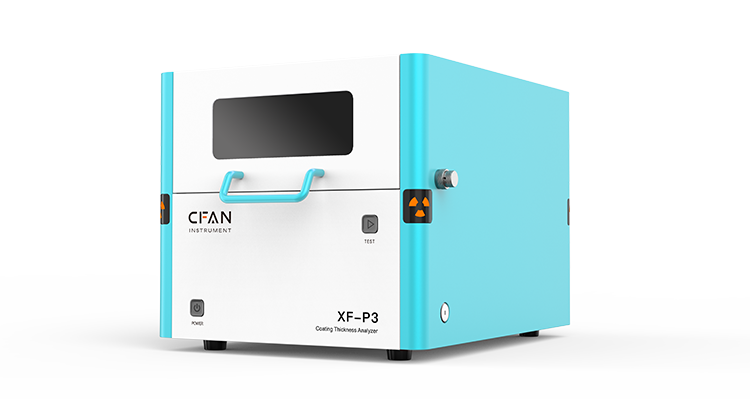

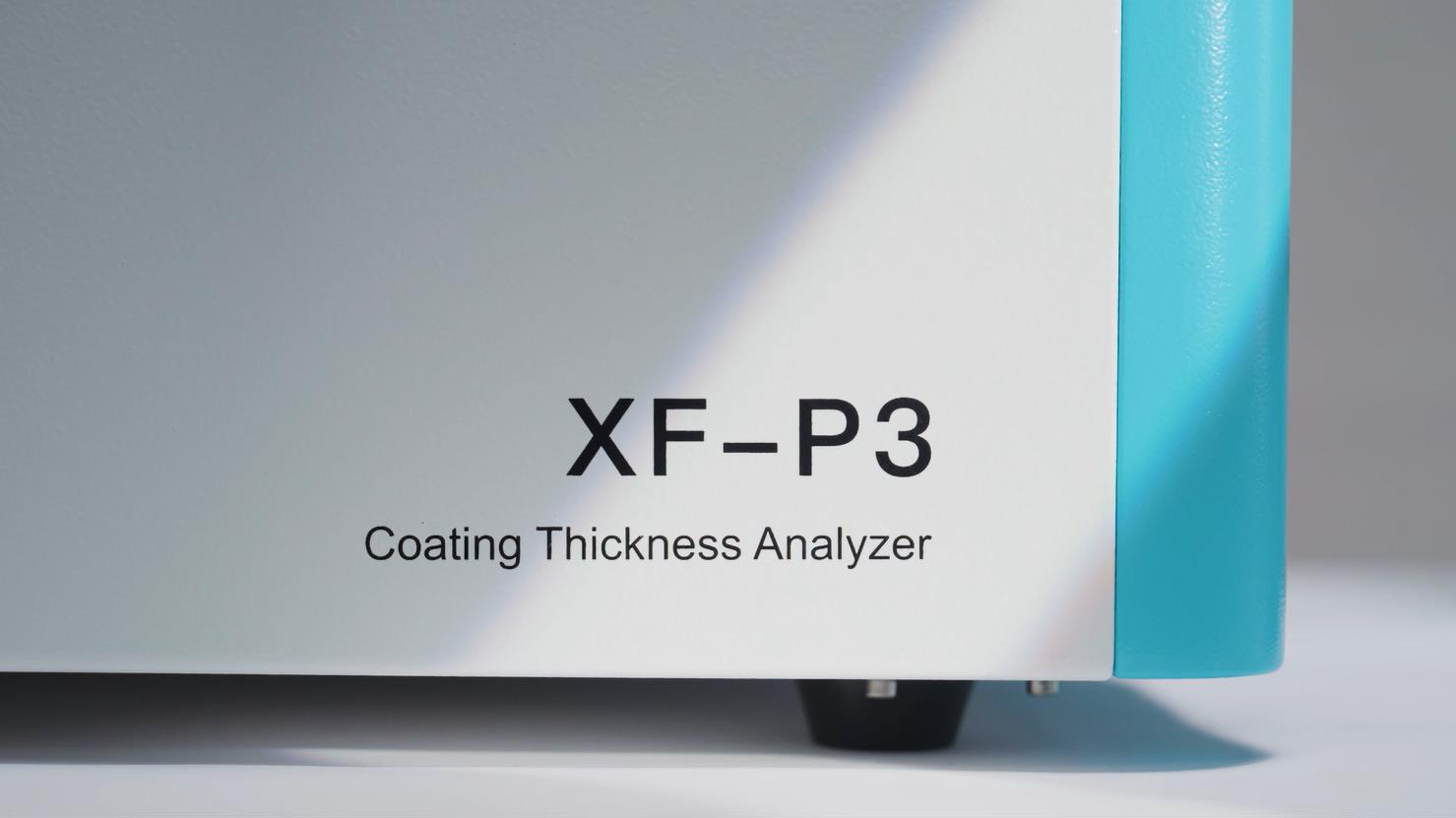

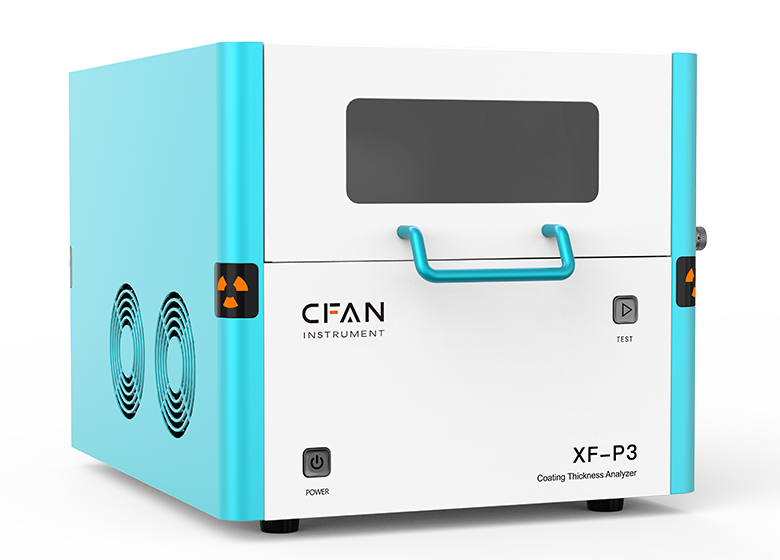

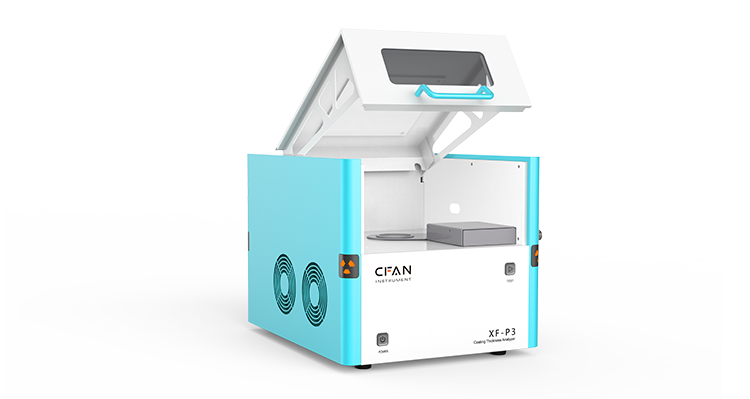

XF-P3 Coating Thickness Analyzer

XF-P3 is a kind of high-performance coating thickness analyzer launched by CFAN Instrument for the coating inspection industry. The machine is equipped with customized Fast-SDD detector, Which has a built-in industrial control computer, runs the Smart FP algorithm, no need for standard sample, and can accurately detect the coating thickness and composition at the same time. It can be widely used in various industries such as electroplating, chemical plating, connectors, electroplating solutions, and PCB coating analysis. The performance of analyzer is fast, stable and accurate.


XF-P3 Brochure Download >>      Get A Quote>>

Analysis elements

Al(No.13)~U(No.92)

Test accuracy

RSD±1.5%(thickness)

XY platform

Easily test tiny samples, Stroke:30mm×30mm

Multilevel analysis

Support up to 10 layers

Smart algorithm

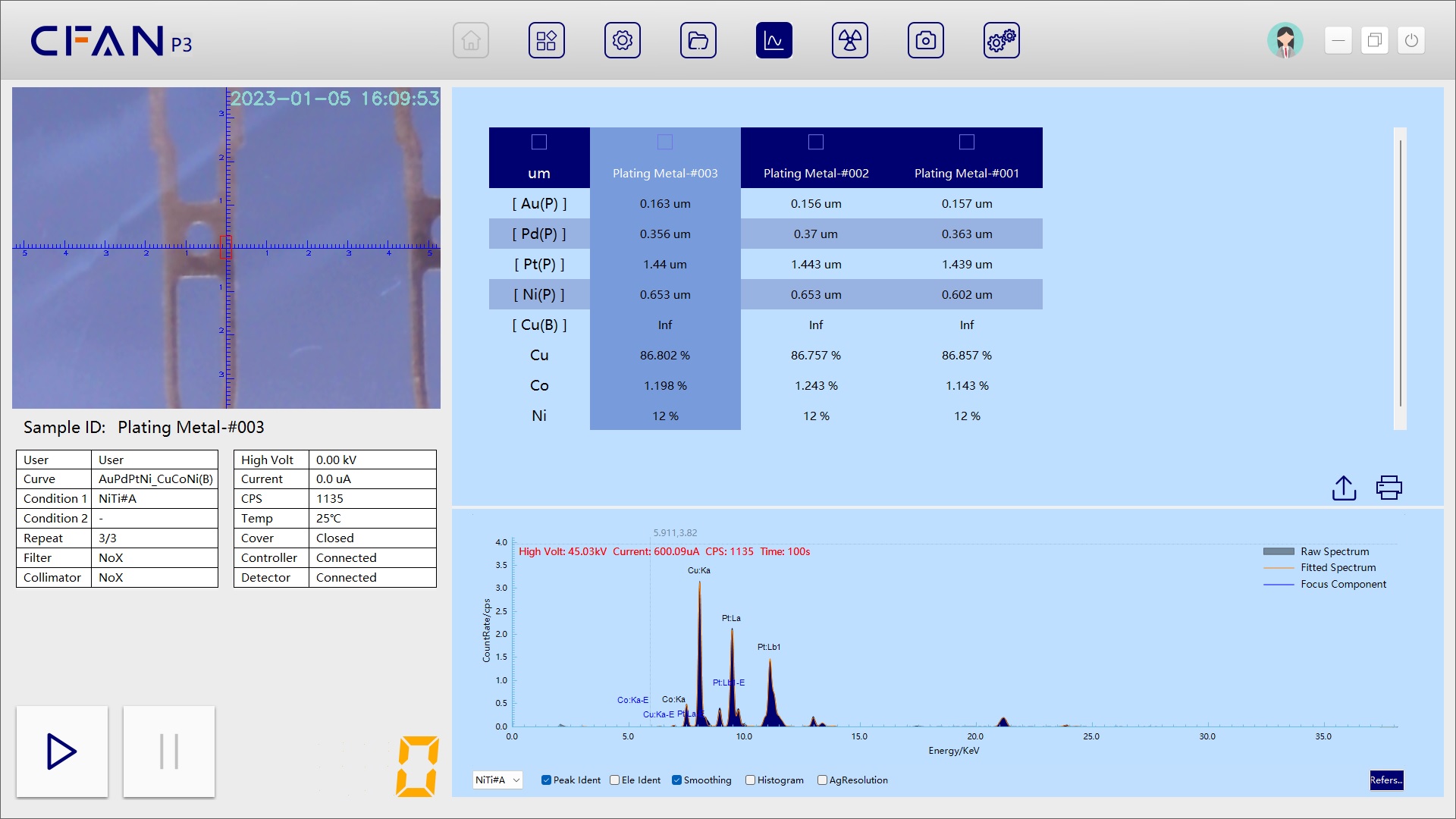

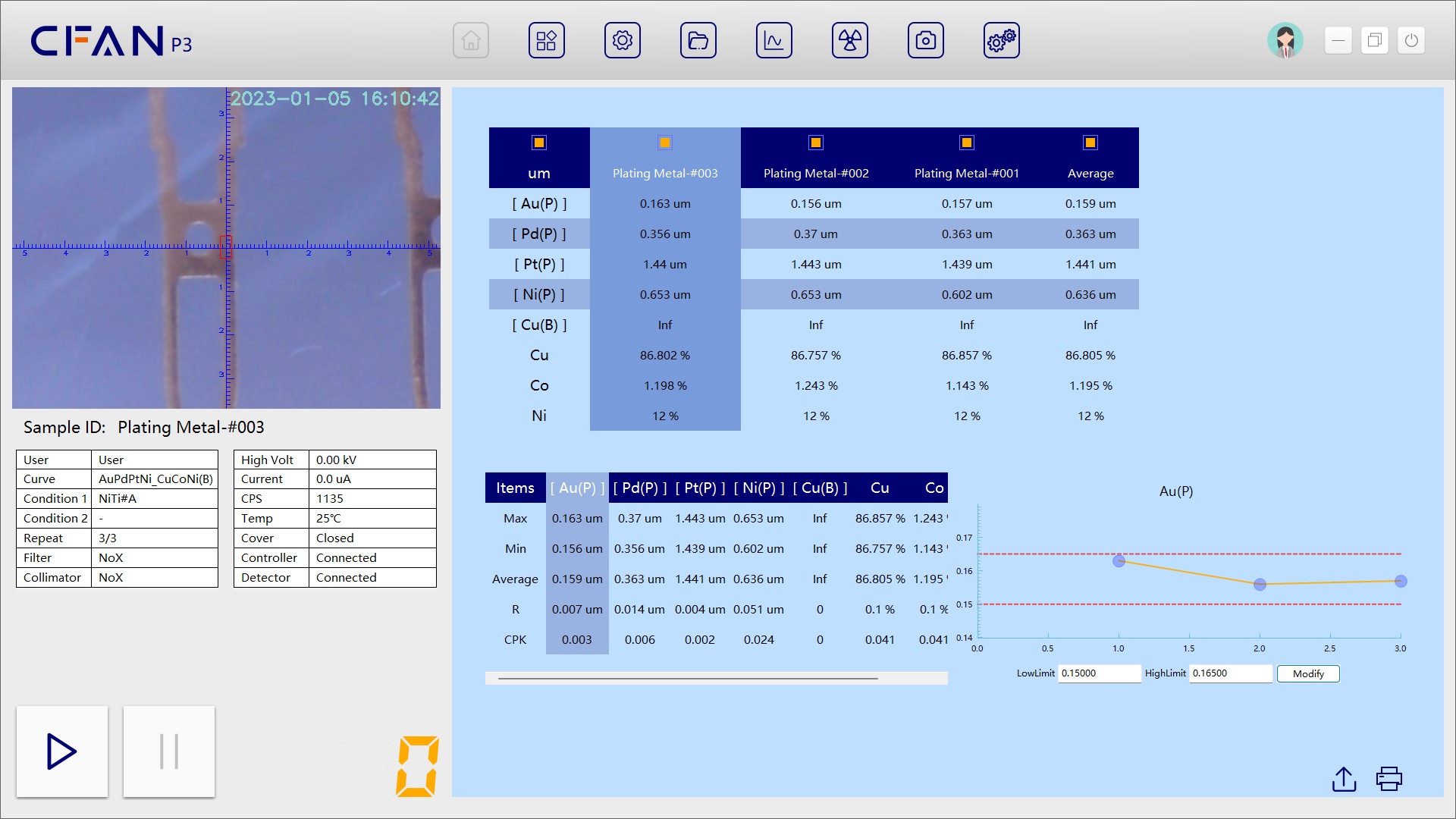

Simultaneous analysis thickness and composition

Multiple collimators

0.1*0.2mm/0.2*0.5mm/Φ1.0mm
